Contract manufacturing
Utilizing the connections of chemicals as specialized trading company to the greatest extent, per our clients request, we do synthesize organic compounds, various contracted processing (pulverization, firing, granulation, drying, mixing, surface treatment, etc.), and subcontracted subdivision.
We will examine the optimum method with the customer from the trial scale to the mass production scale.
If there is a flow for creating the object, we will consider based on the flow.
If there is no flow, we will consider a small-volume prototype method and propose.
-
【Expertise Technique】
・High-Pressure Hydrogenation Reaction
・Sublimation Purification of Reaction
・Suzuki Coupling Reaction
・Using Precious metal Catalysis
Major Partners and Facilities

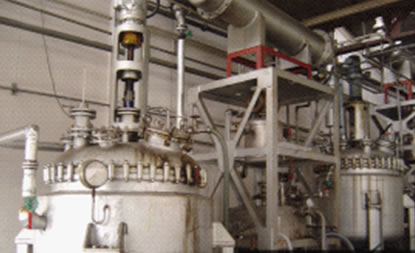

1. Reactor
*Please slide it sideways to see it.
| 1000L | SUS | 0℃～120℃ Heating: hot water,steam cooling: brine | 1unit |
| 500L | SUS | -5℃～20～120℃ Heating: Hot water, Steam cooling: Water cooling | 1unit |
| 300L | SUS | 5℃～120℃ Heating: hot water, steam cooling: brine | 1unit |
| 300L | SUS | 30℃～250℃ Heating: Heat medium cooling: External water cooling | 2unit |
| 1000L | GL | -5℃～120℃ Heating: hot water, steam cooling: brine | 1unit |
| 500L | GL | -5℃～120℃ Heating: hot water, steam cooling: brine | 1unit |
| 200L | GL | -5℃～120℃ Heating: hot water, steam cooling: brine | 2unit |
| 200L | GL | -5℃～120℃ Heating: hot water, steam cooling: brine | 1unit |
2. High temperature reactor
*Please slide it sideways to see it.
| 100L | GL | -60℃～240℃ Heating: Electric heater (oil bath, water bath) Cooling refrigerant | 1unit |
| 100L | SUS | -60℃～240℃ Heating: Electric heater (oil bath, water bath) Cooling refrigerant | 1unit |
| 50L | GL | -60℃～240℃ Heating: Electric heater (oil bath, water bath) Cooling refrigerant | 5unit |
| 50L | SUS | -60℃～240℃ Heating: Electric heater (oil bath, water bath) Cooling refrigerant | 3unit |
| 30L | GL | -60℃～240℃ Heating: Electric heater (oil bath, water bath) Cooling refrigerant | 1unit |
3. Centrifuge separator
*Please slide it sideways to see it.
| 24 inches | SUS | Centrifuge | 3unit |
4. Filter
*Please slide it sideways to see it.
| 65 centimeters | SUS | Vacuum filtration system | 6unit |
| 50 cm | SUS | Vacuum filtration system | 1unit |
5. Column tube
*Please slide it sideways to see it.
| 60cmφ | SUS | Silica gel 100 Kg | 1unit |
| 50cmφ | SUS | Silica gel 40 Kg | 2unit |
| 20cmφ | SUS | Silica gel 10 Kg | 3unit |
6. Dryer
*Please slide it sideways to see it.
| 1m3 | SUS | Hot air circulation (electricity) | 4unit |
| Vacuum heating dryer | 3unit | ||
| Lyophilizer (VirTis) | 1unit |
7. Evaporator
*Please slide it sideways to see it.
| 2L | 2L Rotary evaporator | 9unit | |
| 10L | 10L Rotary evaporator | 1unit | |
| 20L | 20L Rotary evaporator | 2unit |
